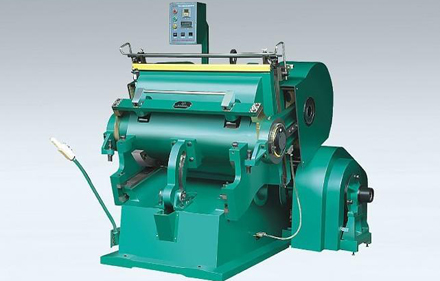

Semi-Automatic Punching Machine - PYQ-203


PYQ203 Creasing & Cutting Machine is a special equipment of creasing and cutting all kinds of Paper,such as ordinary paperboard, corrugated paperboard, plastic and leather products. It is suitable for printing, packing decoration and plastic industry.


1) Main part of the machine is made of top quality material with high strength.
2) One-piece casting makes the machine run smoothly and steadily.
3) Operational height is arranged reasonably and moving bed opens at its optimum angle.
4) Electrical system is designed according to IEC standard
5) Three functions, single & continuous operation and opening dwell, ensure that safety system is reliable. ( dwell range is adjustable)


Inner Chase Size: 930×670mm

Speed: 23±2 strokes per minute

Max. Rule Length: <25m

Total Power: 380V 50HZ 4KW

Overall Dimensions (L×W×H): 1720×1530×1620mm

Net Weight: 3000kg

Watch Demo :
